Specification from Woofersetc.com:
Impedance: Dual 2 ohms
Power Range:50 - 500 Watts RMS
Mounting Depth: 5.75"
Mounting Diameter: 9.60"
Sealed Enclosure Range: .55cu.ft. - 1.1cu.ft
Ported Enclosure Range: 1.0cu.ft. - 1.5cu.ft.
Re- DC Reistance: 1.025/ 4.1 Ohms
Fs- Resonant Frequency: 25.528 Hz
Qes- Electrical "Q": .470
Qms- Mechanical "Q": 2.100
Qts- Total "Q": .384
Vas- Equivalent volume: 2.5cuft (71 liters)
Xmax- One way linear: 19.0mm
Sd- Cone Area: 399.1 cm2
Splo- Sensitivity: 85dB
Link to ID's website: http://www.imagedynamicsusa.com/products.php?Family_Id=3&Product_Id=15

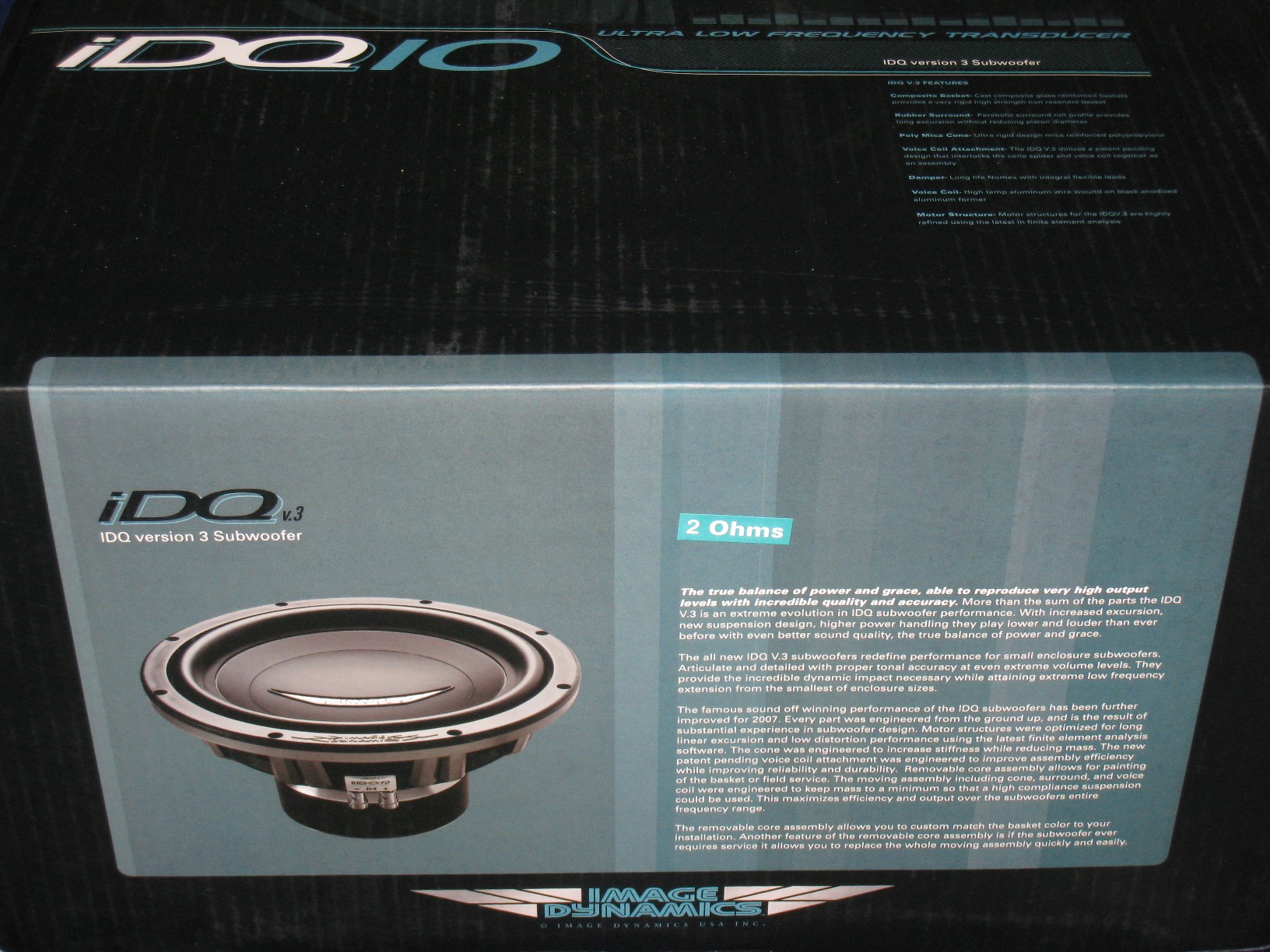

Bought this directly from Image Dynamics early this year. But decided to use their dual 4 ohms version instead. Installed and used in my setup for a couple of month before switching it out. Still pretty much new with original box/packaging.
Asking $160 shipped to Cont. USA via UPS/FedEx ground
Payment via Paypal and shipped to Paypal verified address only.
Please contact me if interested.
